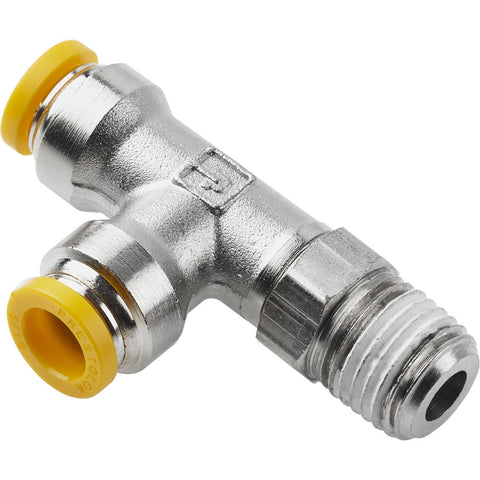

Push-to-Connect Push-to-Connect x Male BSPT Fitting: Swivel Branch Tee, 1/4 Thread, BSPT, 8 mm OD
$24.70
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 13363221
Brand: Parker
Model #: W172PLP-8M-4R
Product Specifications
| Fitting Type | Swivel Branch Tee |
| Connection Type | Push-to-Connect x Male BSPT |
| Material | Nickel-Plated Brass |
| Thread Size | 1/4 |
| Color | Silver with Yellow Release Button |
| Tube Outside Diameter (mm) | 8 |
| Hex Size (Inch) | 9/16 |
| Thread Type | BSPT |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is Yellow Flame Resistant Material that is Compliant with the UL94 V-0, Flame Resistant Standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (mm) | 56.35 |
| Overall Length (Decimal Inch) | 1.3200 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
