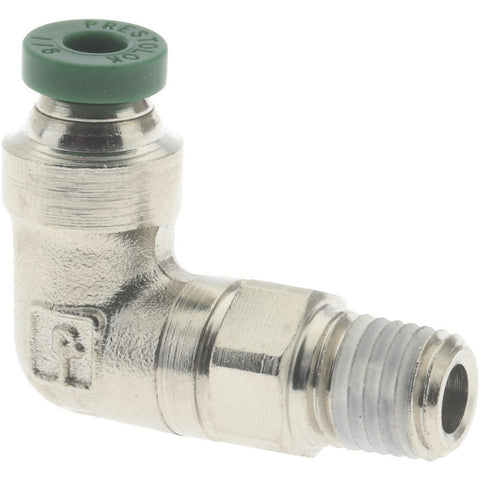

Push-to-Connect Push-to-Connect x Male NPTF Fitting: 90 deg Swivel Elbow, 1/16 Thread, NPTF, 1/8" OD
$15.97
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 01080142
Brand: Parker
Model #: W169PLP-2-1
Product Specifications
| Fitting Type | 90 deg Swivel Elbow |
| Connection Type | Push-to-Connect x Male NPTF |
| Material | Nickel-Plated Brass |
| Thread Size | 1/16 |
| Color | Silver |
| Tube Outside Diameter | 1/8 |
| Hex Size (Inch) | 3/8 |
| Thread Type | NPTF |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is Black Flame Resistant Material that is Compliant with the UL94 V-0, Flame Resistant Standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
