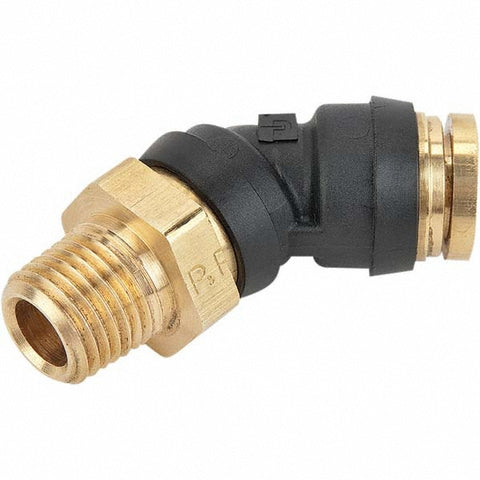

Push-to-Connect Push-to-Connect x Male NPTF Fitting: 45 deg Swivel Elbow, NPTF, 3/4" OD
$35.14
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 00991976
Brand: Parker
Model #: VS379PTCR-12-12
Product Specifications
| Fitting Type | 45 deg Swivel Elbow |
| Connection Type | Push-to-Connect x Male NPTF |
| Material | Composite |
| Color | Black |
| Tube Outside Diameter | 3/4 |
| Hex Size (Inch) | 1-3/16 |
| Thread Type | NPTF |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | -40.000 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200.000 |
| Overall Length (mm) | 42.41 |
| Overall Length (Decimal Inch) | 1.6700 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
