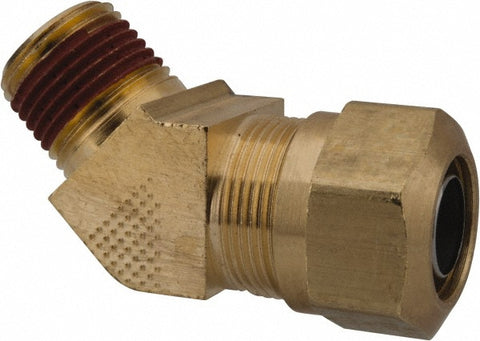

Compression Tube 45 Deg Male Elbow: 1/2, 3/4" Tube OD, Compression x MNPTF
$62.98
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87872909
Brand: Parker
Model #: VS279NTA-12-8
Product Specifications
| Fitting Type | 45 Deg Male Elbow |
| Material | Brass |
| End Connections | Compression x MNPTF |
| Thread Size (Inch) | 1/2 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 3/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Standards | SAE J1131; SAE 100302 BA; SAE J246; D.O.T. FMVSS571.106 |
| Straight Thread Size | 1-18 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
