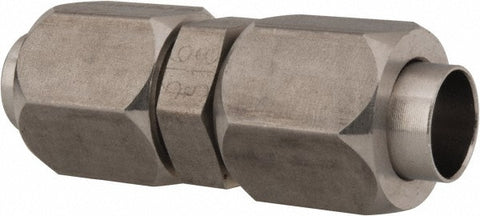

Stainless Steel Flared Tube Union: 1/2" OD, 3/4-16 Thread, 37 deg Flared Angle
$81.70
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 76042563
Brand: Made in USA
Model #: TX-8-U-A
Product Specifications
| Fitting Type | Union |
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Size | 3/4-16 |
| Thread Standard | UNF |
| End Connection | Flare x Flare |
| Material Grade | 316 |
| Standards | MS 51501; SAE 070101 |
| Max Working Pressure Dynamic | 6000 |
| Max Working Pressure Static | 10200 |
| Outside Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 1.4100 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
