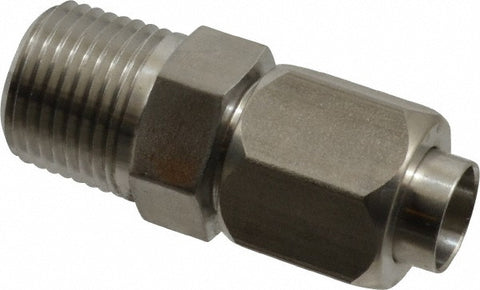

Stainless Steel Flared Tube Connector: 1/2" OD, 1/2-14 Thread, 37 deg Flared Angle
$52.58
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 76042571
Brand: Made in USA
Model #: TX-8-8-C-A
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Size | 1/2-14 |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Material Grade | 316 |
| Standards | MS51500; SAE 070102 |
| Max Working Pressure Dynamic | 6000 |
| Max Working Pressure Static | 9600 |
| Outside Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 1.6900 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
