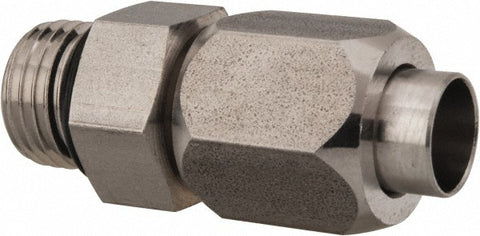

Stainless Steel Flared Tube Connector: 3/8" OD, 9/16-18 Thread, 37 deg Flared Angle
$31.90
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 76041870
Brand: Made in USA
Model #: TX-6-GC-A
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Size | 9/16-18 |
| Thread Standard | UNF |
| End Connection | Flared to Male SAE O-Ring |
| Material Grade | 316 |
| Standards | SAE 070120; MS51525 |
| Max Working Pressure Dynamic | 6000 |
| Max Working Pressure Static | 9600 |
| Outside Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 1.3000 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
