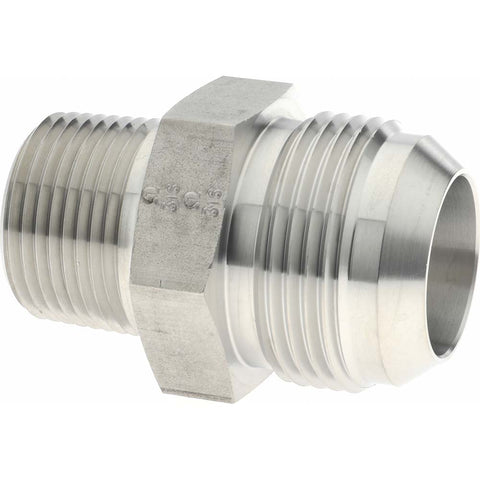

Stainless Steel Flared Tube Connector: 1" OD, 3/4-14 Thread, 37 deg Flared Angle
$70.45
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 33662727
Brand: Made in USA
Model #: TX-16-12-C
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Size | 3/4-14 |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Material Grade | 316 |
| Standards | MS51500; SAE 070102 |
| Max Working Pressure Dynamic | 4200 |
| Outside Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 2.1100 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
