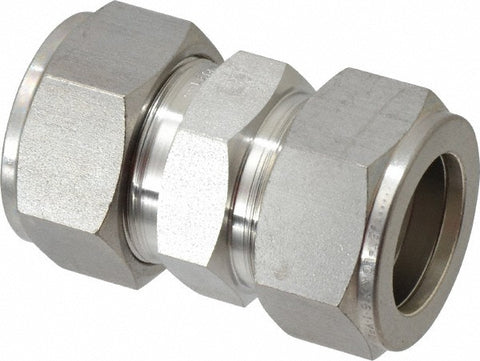

Compression Tube Union: 1-5/16-20, 1" Tube OD, Compression x Compression
$116.58
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 98264856
Brand: Value Collection
Model #: SS-TU-FT16
Product Specifications
| Fitting Type | Union |
| Material | Stainless Steel |
| End Connections | Compression x Compression |
| Thread Size (Inch) | 1-5/16-20 |
| Thread Standard | UNF |
| Tube Outside Diameter | 1 |
| Overall Length (Decimal Inch) | 2.5500 |
| Overall Length (mm) | 64.77 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-1610-6 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
