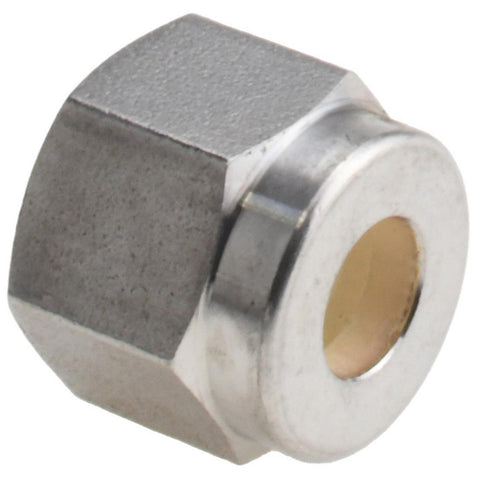

Compression Tube Nut: 7/16-20, 1/4" Tube OD, FNPT
$4.72
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 98302037
Brand: Value Collection
Model #: SS-TN-FT4
Product Specifications
| Fitting Type | Nut |
| Material | Stainless Steel |
| End Connections | FNPT |
| Thread Size (Inch) | 7/16-20 |
| Thread Standard | UNF |
| Tube Outside Diameter | 1/4 |
| Overall Length (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 12.70 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-402-1 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
