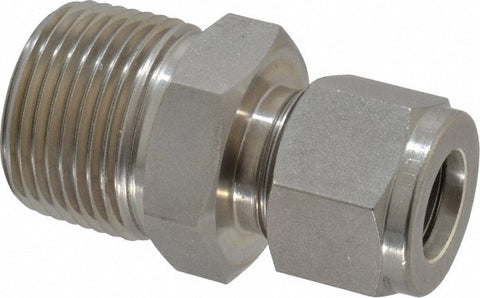

Compression Tube Connector: 1/2" Tube OD, Compression x MNPT
$8.00
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 98303175
Brand: Value Collection
Model #: SS-MC-FT8-MN12
Product Specifications
| Fitting Type | Connector |
| Material | Stainless Steel |
| End Connections | Compression x MNPT |
| Thread Standard | NPT; UNF |
| Tube Outside Diameter | 1/2 |
| Overall Length (Decimal Inch) | 1.9902 |
| Overall Length (mm) | 50.55 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-810-1-12 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
