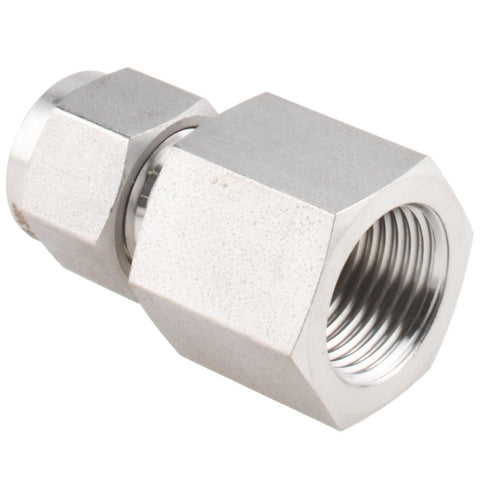

Compression Tube Connector: 3/8" Tube OD, Compression x FNPT
$6.54
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 98309966
Brand: Value Collection
Model #: SS-FC-FT6-FN6
Product Specifications
| Fitting Type | Connector |
| Material | Stainless Steel |
| End Connections | Compression x FNPT |
| Thread Standard | NPT; UNF |
| Tube Outside Diameter | 3/8 |
| Overall Length (Decimal Inch) | 1.5402 |
| Overall Length (mm) | 39.12 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-600-7-6 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
