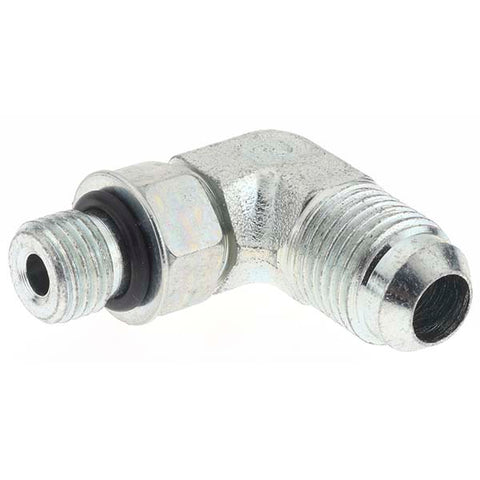

Steel Flared Tube 90 Deg Elbow: 3/8" OD, 7/16-20 Thread, 37 deg Flared Angle
$103.64
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66458183
Brand: Parker
Model #: PT-00204
Product Specifications
| Fitting Type | 90 Deg Elbow |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 7/16-20 |
| Thread Standard | SAE-ORB |
| End Connection | Flare x SAE-ORB |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE J514; SAE 070220 |
| Max Working Pressure Dynamic | 6000 |
| Outside Diameter (Inch) | 3/8 |
| Maximum Working Temprature (Deg C) | 260 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
