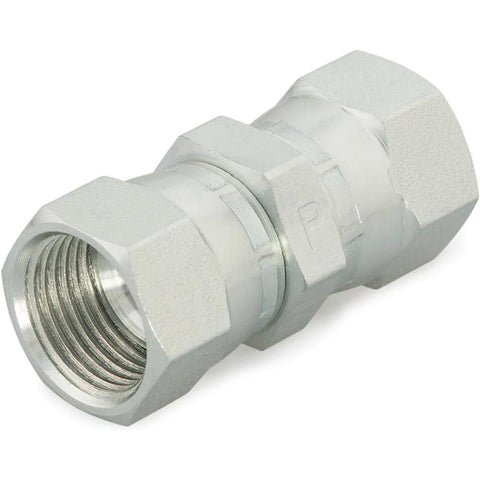

Steel Flared Tube Connector: 1/4" OD, 37 deg Flared Angle
$185.99
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66458480
Brand: Parker
Model #: PT-00168
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| End Connection | Flare x Flare |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE 070108; SAE J514 |
| Max Working Pressure Dynamic | 7500 |
| Outside Diameter (Inch) | 1/4 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.4800 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
