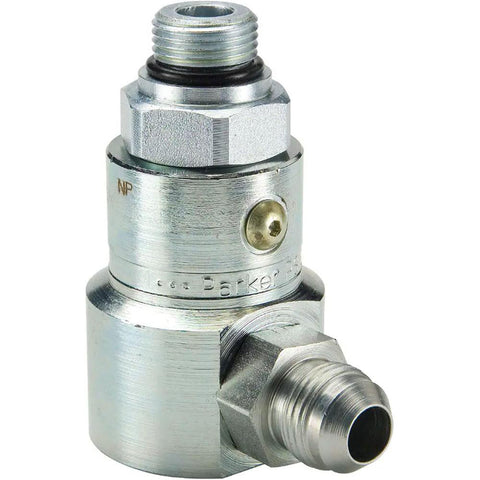

Hydraulic Hose Male ORB To Male JIC Swivel Fitting: 1", 1-5/16-12, 5,000 psi
$343.40
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 78362910
Brand: Parker
Model #: PS1690503-16-16
Product Specifications
| Fitting Type | Male ORB To Male JIC Swivel Fitting |
| Pressure Rating | 5000 |
| Hose Size | 1 in |
| Material | Steel |
| Thread Size (Inch) | 1-5/16-12 |
| Shape | 90 Deg Elbow |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000.00 |
| Maximum Working Pressure (bar) | 5000.00 |
| Overall Length (Decimal Inch) | 4.1800 |
| Overall Length (mm) | 106.30 |
| Series | PS |
| Shaft Type | Male SAE O-Ring Straight Thread |
| Shaft Thread Size | 1 |
| Housing Type | Male JIC 37 Deg Flare |
| Body Diameter (Inch) | 1 |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
