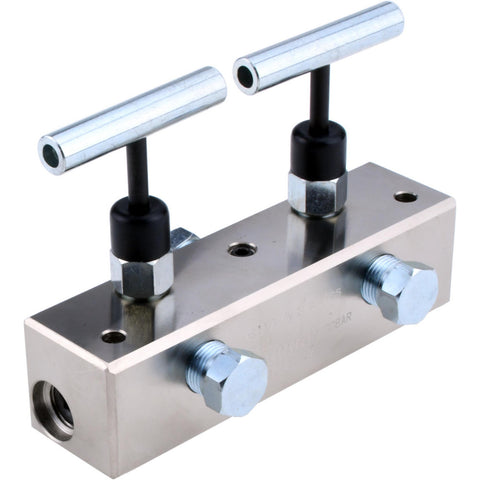

Manifold: 3/8" Inlet, 3/8" Outlet, 2 Inlet Ports, 2 Outlet Ports, 6" OAL, 1.625" OAW, 4.13" OAH
$467.63
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 30568638
Brand: Value Collection
Model #: PS-MH-HPC1-157
Product Specifications
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Number of Inlet Ports | 2 |
| Number Of Outlet Ports | 2 |
| Outlet Center to Center Distance | 3.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Body Material | Steel |
| Maximum Working Pressure (PSI - 3 Decimals) | 10000.00 |
| Number of Ports | 3 |
| Thread Type | NPTF |
| Minimum Working Pressure (psi) | 0.00 |
| Type | Manifold with Two Needle Valves |
| Minimum Temperature (Deg F - 3 Decimals) | -22 |
| Width (Decimal Inch - 4 Decimals) | 1.6250 |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2800 |
| Height (Decimal Inch) | 4.1300 |
| Maximum Temperature (F) ( - 0 Decimals) | 212 |
| UNSPSC Code | 40141734 |
| Country of Origin | Taiwan |
