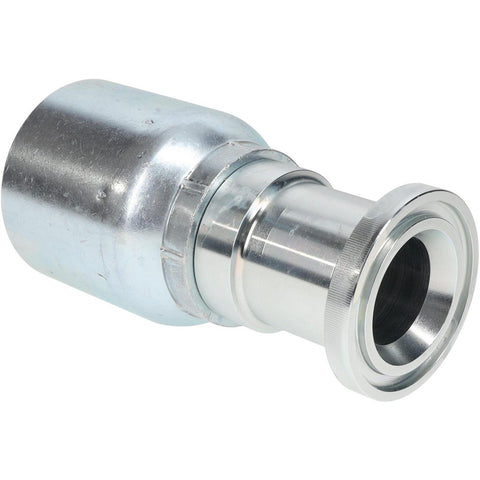

Hydraulic Hose Straight SAE Code 61 Flange Head Fitting: 1.5" ID, 24 mm, 1-1/2", 5,000 psi
$214.92
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 61288841
Brand: Parker
Model #: PP-00775
Product Specifications
| Fitting Type | Straight SAE Code 61 Flange Head Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.5000 |
| Pressure Rating | 5000 |
| Hose Size | 24 |
| Material | Steel |
| Thread Type | SAE |
| Thread Size (Inch) | 1-1/2 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000.00 |
| Maximum Working Pressure (bar) | 5000.00 |
| Overall Length (Decimal Inch) | 5.5200 |
| Overall Length (mm) | 140.20 |
| For Use With | 387; ST, 787; ST, 797; ST, 487; ST Hoses; TC |
| Standards | California PROP 65; ISO 12151-3-S-L |
| Series | 77 |
| Shaft Type | SAE |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
