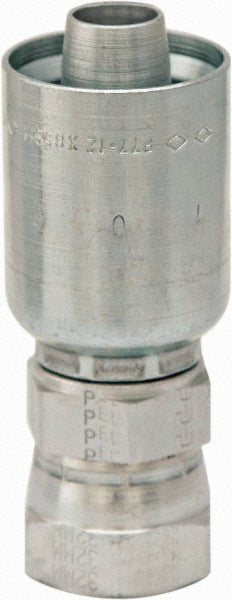

Hydraulic Hose Straight Female JIC 37 ° Swivel Fitting: 1.5" ID, 24 mm, 1-7/8-12, 5,000 psi
$140.29
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 92694983
Brand: Parker
Model #: PP-00764
Product Specifications
| Fitting Type | Straight Female JIC 37 deg Swivel Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.5000 |
| Pressure Rating | 5000 |
| Hose Size | 24 |
| Material | Steel |
| Thread Type | JIC |
| Thread Size (Inch) | 1-7/8-12 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000.00 |
| Maximum Working Pressure (bar) | 5000.00 |
| Overall Length (Decimal Inch) | 5.3400 |
| Overall Length (mm) | 135.70 |
| For Use With | 387; ST, 787; ST, 797; ST, 487; ST Hoses; TC |
| Standards | ISO 12151-5; California PROP 65 |
| Series | 77 |
| Shaft Type | JIC |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
