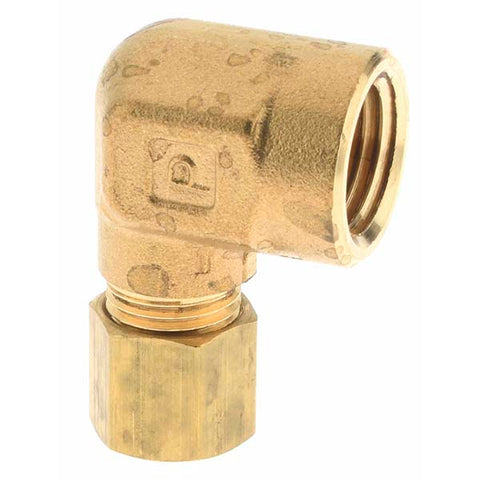

Compression Tube Female Elbow: 1/4-18, 1/4" Tube OD, Tube
$43.83
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 64634561
Brand: Parker
Model #: PF-00194
Product Specifications
| Fitting Type | Female Elbow |
| Material | Brass |
| End Connections | Tube |
| Thread Size (Inch) | 1/4-18 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 300 |
| Overall Length (Decimal Inch) | 1.0200 |
| Standards | SAE J-512 |
| Minimum Temperature (C - 2 Decimals) | 54 |
| Maximum Temperature (C) | 93 |
| Minimum Temperature (Deg F - 3 Decimals) | -65 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
