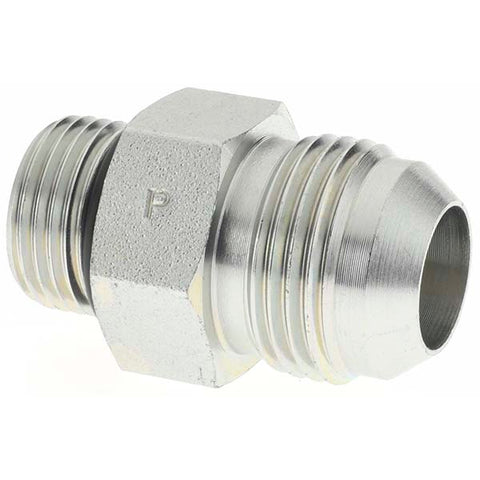

Steel Flared Tube Straight SAE Male Adapter: 3/4" OD, 7/8-14 Thread, 37 deg Flared Angle
$113.98
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66456351
Brand: Parker
Model #: P00109
Product Specifications
| Fitting Type | Straight SAE Male Adapter |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 7/8-14 |
| Thread Standard | SAE Male Straight Thread |
| End Connection | Male |
| Maximum Working Temperature (F) | 500 |
| Standards | SAE 070120; ISO 8434-2; SAE J514 |
| For Use With | SAE Male JIC 37 deg Flare |
| Outside Diameter (Inch) | 3/4 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.8800 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
