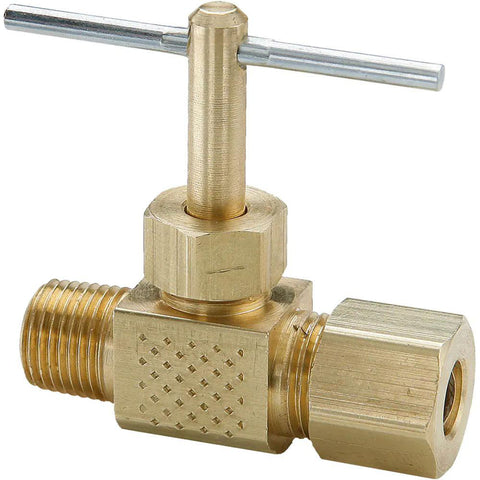

Needle Valve: Straight, 1/4 x 1/8" Pipe, Compression to Male Pipe End, Brass Body
$25.88
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 03004983
Brand: Parker
Model #: NV106C-4-2
Product Specifications
| Style | Straight |
| Pipe Size | 1/4 x 1/8 |
| End Connection | Compression to Male Pipe |
| Body Material | Brass |
| Needle Material | Brass |
| Overall Length (Decimal Inch) | 1.5300 |
| Overall Height (Decimal Inch) | 1.4100 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Minimum Working Temperature (Deg F) | -45 |
| Maximum Working Temperature (F) | 250 |
| Thread Type | NPTF |
| Thread Size | 1/8 |
| Tube Outside Diameter (Fractional Inch) | 1/4 |
| UNSPSC Code | 40141602 |
| Country of Origin | UNITED STATES |
