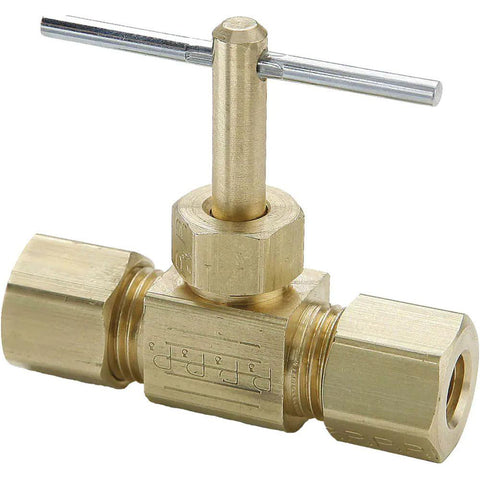

Needle Valve: Straight, 5/16" Pipe, Compression x Compression End, Brass Body
$8.17
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 03004942
Brand: Parker
Model #: NV105C-5
Product Specifications
| Style | Straight |
| Pipe Size | 5/16 |
| End Connection | Compression x Compression |
| Body Material | Brass |
| Needle Material | Brass |
| Overall Length (Decimal Inch) | 1.7300 |
| Overall Height (Decimal Inch) | 1.3500 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Minimum Working Temperature (Deg F) | -45 |
| Maximum Working Temperature (F) | 250 |
| Tube Outside Diameter (Fractional Inch) | 5/16 |
| UNSPSC Code | 40141602 |
| Country of Origin | UNITED STATES |
