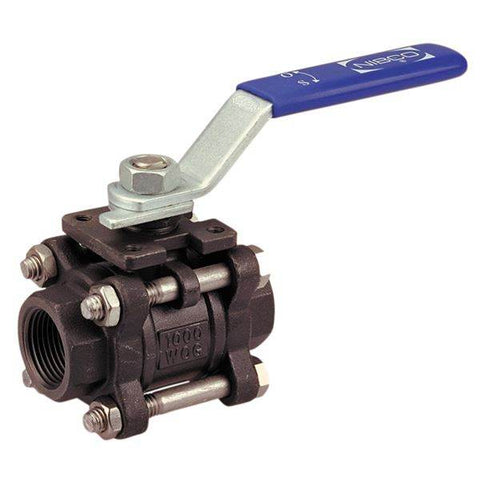

(Nibco Part#: NL99J5A) TM-595-CS-R-66 - Three-Piece Carbon Steel Ball Valve - Full Port, Threaded ISO Mount
$170.23
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: NL99J5A
Brand: Nibco
UPC Code #: 039923793706
Product Specifications
| Type | Ball Valve |
| Valve Size | 1 |
| Connection Type | T -- Female NPT Thread (FIPT) |
| Seal Material | RPTFE (Reinforced) |
| Seat Material | RPTFE (Reinforced) |
| Stem Material | SS - Stainless Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 64 |
| Valve Operator | Locking Lever Handle with ISO Actuator Mounting Pad |
| Description | TM595CSR66LL 1 THRD BALL W/MT LK CS |
| eClass Classification | Actuation Ball Valves |
| Turns/Operation | Quarter-Turn |
| Weight | 2.930 lb |
