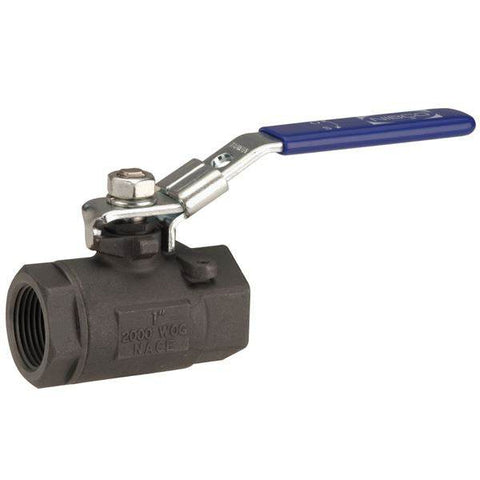

(Nibco Part#: NL94T08) TC-580-CS-R-25-LL - Two-Piece Carbon Steel Ball Valve - Conventional Port, Cast Mounting Pad
$58.36
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: NL94T08
Brand: Nibco
UPC Code #: 039923678423
Product Specifications
| Type | Ball Valve |
| Valve Size | 3/4 |
| Connection Type | T -- Female NPT Thread (FIPT) |
| Seal Material | RPTFE (Reinforced) |
| Seat Material | RPTFE (Reinforced) |
| Stem Material | CS - Carbon Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 23 |
| Valve Operator | CS Locking Lever Handle |
| Description | TC580CSR25LL 3/4 THD RP BV 2PT MTG LL CS |
| Turns/Operation | Quarter-Turn |
| Weight | 1.3 lb |
