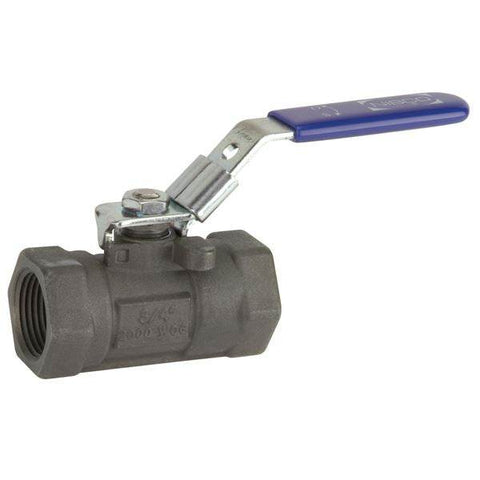

(Nibco Part#: NL9439BP) T-560-CS-R-25-FS-LL - One-Piece Carbon Steel Ball Valve - Reduced Port, Fire Safe
$126.67
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: NL9439BP
Brand: Nibco
UPC Code #: 039923792600
Product Specifications
| Type | Ball Valve |
| Valve Size | 1 1/4 |
| Connection Type | T -- Female NPT Thread (FIPT) |
| Seal Material | RPTFE (Reinforced) |
| Seat Material | RPTFE (Reinforced) |
| Stem Material | CS - Carbon Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 35 |
| Valve Operator | CS Locking Lever Handle |
| Description | T560CSR25FSLL 1-1/4 FS W/LOCK HANDLE |
| eClass Classification | Carbon Steel Ball Valves |
| Turns/Operation | Quarter-Turn |
| Weight | 2.337 lb |
