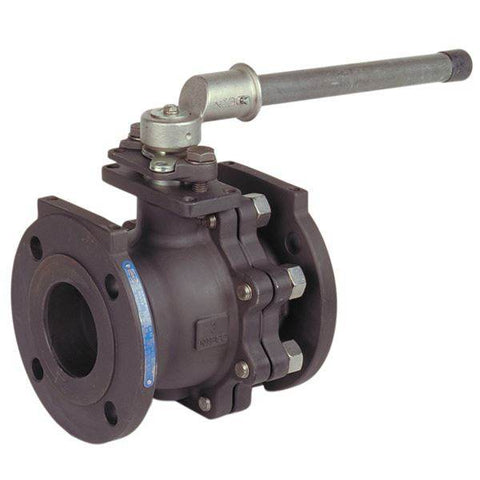

(Nibco Part#: NG306FM) F-515-CS-F-66-FS - Split-body Carbon Steel Ball Valve - Full Port, Class 150
$38,183.26
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: NG306FM
Brand: Nibco
UPC Code #: 039923652010
Product Specifications
| Type | Ball Valve |
| Valve Size | 10 |
| Connection Type | F -- Flanged |
| Seal Material | Carbon-Filled PTFE |
| Seat Material | Carbon-Filled PTFE |
| Stem Material | SS - Stainless Steel |
| Ball Material | SS - Stainless Steel |
| Body Material | Carbon Steel |
| Cv Coefficient | 14400 |
| Valve Operator | Bare Stem |
| Description | F515CSF66FS 10 FLG BALL BARE STEM F/S CS |
| eClass Classification | Carbon Steel Ball Valves |
| Turns/Operation | Quarter-Turn |
| Weight | 391.872 lb |
