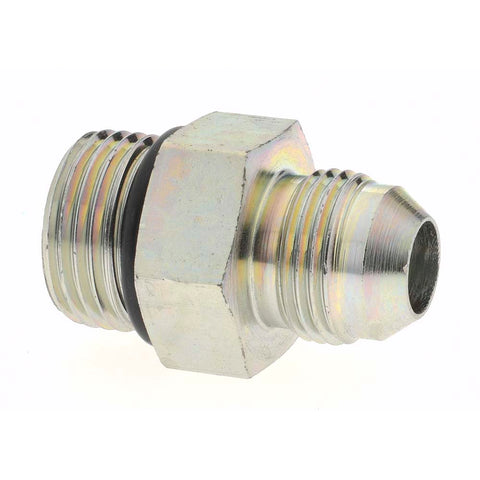

Steel Flared Tube Connector: 1/2" OD, 7/8-14 Thread, 37 deg Flared Angle
$26.54
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 70909866
Brand: Parker
Model #: KP75896
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 7/8-14 |
| Thread Standard | SAE-ORB |
| End Connection | Flare x SAE-ORB |
| Maximum Working Temperature (F) | 500 |
| Standards | SAE 070120; ISO 8434-2; SAE J514 |
| Max Working Pressure Dynamic | 5000 |
| Outside Diameter (Inch) | 1/2 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.6000 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
