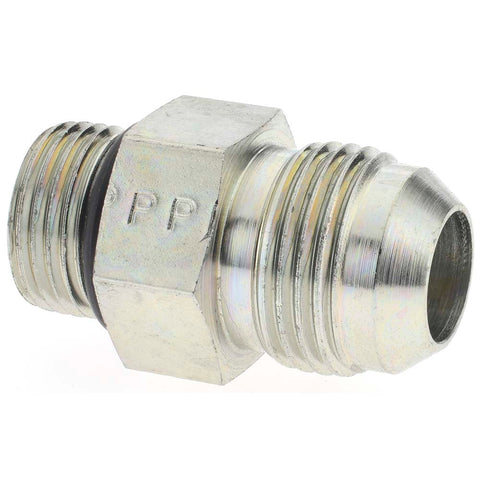

Steel Flared Tube Connector: 5/8" OD, 3/4-16 Thread, 37 deg Flared Angle
$27.91
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 70910245
Brand: Parker
Model #: KP73594
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 3/4-16 |
| Thread Standard | SAE-ORB |
| End Connection | Flare x SAE-ORB |
| Maximum Working Temperature (F) | 500 |
| Standards | SAE 070120; ISO 8434-2; SAE J514 |
| Max Working Pressure Dynamic | 5000 |
| Outside Diameter (Inch) | 5/8 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.6400 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
