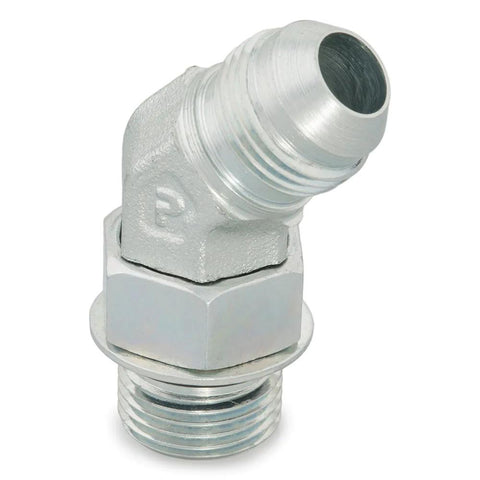

Steel Flared Tube 45 Deg Elbow: 3/8" OD, 9/16-18 Thread, 37 deg Flared Angle
$57.99
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 70910104
Brand: Parker
Model #: KP73586
Product Specifications
| Fitting Type | 45 Deg Elbow |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 9/16-18 |
| Thread Standard | SAE-ORB |
| End Connection | Flare x SAE-ORB |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE J514; SAE 070320 |
| Max Working Pressure Dynamic | 6000 |
| Outside Diameter (Inch) | 3/8 |
| Maximum Working Temprature (Deg C) | 260 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
