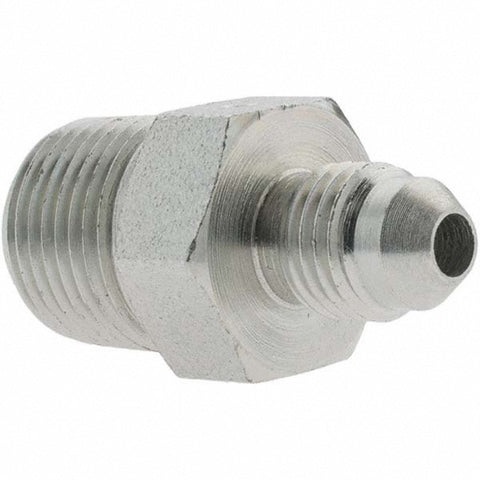

Steel Flared Tube Connector: 1/4" OD, 3/8-18 Thread, 37 deg Flared Angle
$20.66
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66440801
Brand: Parker
Model #: KP17568
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 3/8-18 |
| Thread Standard | NPTF |
| End Connection | Flare x NPTF |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE 070102; SAE J514 |
| Max Working Pressure Dynamic | 6000 |
| Outside Diameter (Inch) | 1/4 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.4400 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
