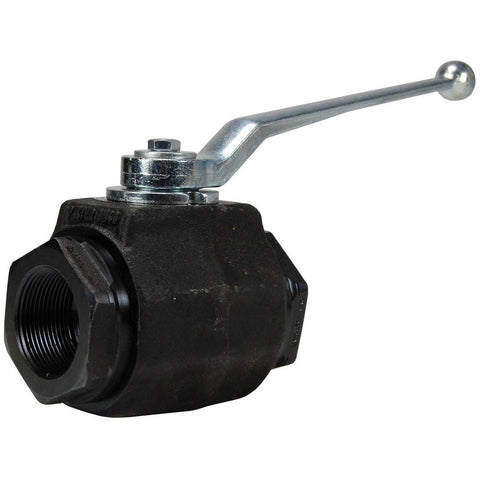

Full-Bore: 1" Pipe, Female x Female Port, Carbon Steel
$137.61
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 59305177
Brand: Dixon Valve & Coupling
Model #: HPBV10
Product Specifications
| Valve Type | Full-Bore |
| Pipe Size | 1 |
| Valve Structure | 1-Piece |
| Body Material | Carbon Steel |
| Connection Style | Threaded |
| End Connection | NPTF |
| Port Type | Female x Female |
| Handle Type | Lever |
| Style | High Pressure Full Bore |
| Maximum Working Pressure (PSI - 3 Decimals) | 6000 |
| Temperature Range | -20°F to 215°F |
| Thread Size | 1 |
| Seal Material | FPM; FKM |
| Handle Material | Carbon Steel |
| Cv Rating | Not Rated |
| Standards | None |
| Maximum Working Temperature (F) | 215 |
| Maximum Working Temprature (Deg C) | 102 |
| Minimum Working Temperature (Deg F) | -20 |
| Minimum Working Temperature (Deg C) | -29 |
| Lead Free | No |
| WOG Rating (psi) | 6000 |
| Epa Watersense Certified | No |
| Seat Material | Polyacetal |
| Color | Black |
| Finish Coating | Black Oxide |
| Number Of Pieces | 1 |
| UNSPSC Code | 40141607 |
| Country of Origin | Germany |
