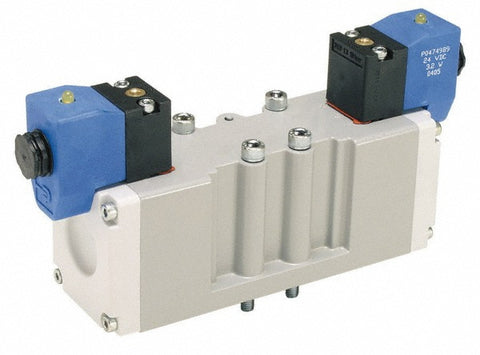

Solenoid Valve: 2-Position
$468.00
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 51017515
Brand: Parker
Model #: H12VXBG0B9D
Product Specifications
| Valve Type | Internally-Piloted |
| Valve Way & Position | 4-Way/2-Position |
| Valve Configuration | Manifold Mount |
| Port Size | .75 in |
| Port Size | 3/8 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 145.000 |
| Cv Factor Nc | 1.5000 |
| Overall Height (Decimal Inch) | 3.5400 |
| Overall Length (Decimal Inch) | 7.3200 |
| Standards | ISO 1179 Specifications; cCSAus Approved; BSPP Manifold & Subbase Ports Meet |
| Inlet Size | 3/8 in |
| Cv Rating | 1.500 |
| Minimum Working Pressure (psi) | 25 |
| Special Item Information | Non-Locking Override Function; ISO 5599-2 Valve Less Base |
| Applications | Pneumatics |
| Wattage | 3.20 |
| Width (Decimal Inch - 4 Decimals) | 1.6500 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | Double Acting |
| Minimum Temperature (Deg F - 3 Decimals) | 5 |
| Type | IP 65 |
| Maximum Temperature (C) | 49 |
| Minimum Temperature (C - 2 Decimals) | -15 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
