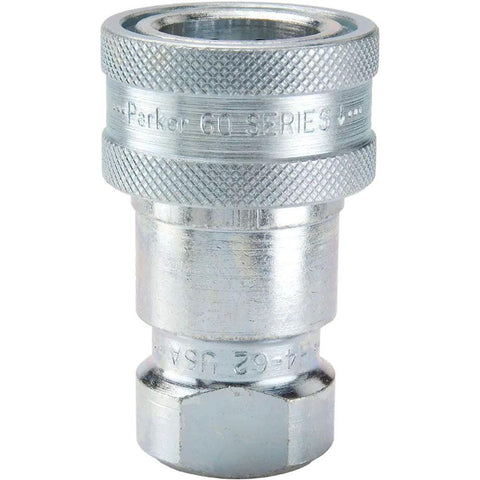

Hydraulic Hose Female Straight Thread Coupler: 1/8", 7/16-20, 5,000 psi
$57.71
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 93893469
Brand: Parker
Model #: H1-62-T4
Product Specifications
| Fitting Type | Female Straight Thread Coupler |
| Pressure Rating | 5000 |
| Hose Size | 1/8 in |
| Material | Steel |
| Thread Size (Inch) | 7/16-20 |
| Coupler Size | 0.1250 |
| Shape | Straight |
| Connection Type | Threaded |
| Maximum Flow Rate (Gpm - 2 Decimals) | 0.80 |
| Maximum Flow Rate (LPM) | 3.00 |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000.00 |
| Maximum Working Pressure (bar) | 5000.00 |
| Overall Length (Decimal Inch) | 2.0600 |
| For Use With | Gases; Industrial Hydraulic Lines; Water & Coolant Lines; Mobile Equipment; Food & Chemical Processing |
| Standards | ISO 7241-1, Series B |
| Series | 60 |
| Shaft Type | SAE ORB |
| Body Diameter (Inch) | 1/8 |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
