(Nibco Part#: H-91702W) 9170W Series - Full Port Forged Brass Ball Valves - Flow Control Products

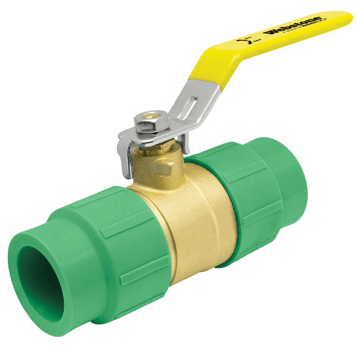

(Nibco Part#: H-91702W) 9170W Series - Full Port Forged Brass Ball Valves

$22.72

Payment Forms We Accept: Visa, Mastercard, Discover, American Express


Material #: H-91702W
Brand: Nibco
UPC Code #:

Product Specifications

Industry Standards/Certifications NSF/ANSI 61, NSF/ANSI 372
Type Ball Valve
Valve Size 1/2
Connection Type Metric Socket Female
Valve Operator Lever Handle
Weight 0.580 lb
Maximum Temperature 180 ºF
Maximum Operating Pressure 600 psi
Maximum Operating Pressure Note Determined by intended operating conditions and limitations specific to the system design. Maximum pressure rating for the seat and body alone is 600 PSI.
Body Material Brass with PP-R
End Material Brass with PP-R
Seat Material PTFE
Ball Material Brass HCP
Stem Material Brass
Stem Seal Material PTFE
Packing Gland Material Brass
Lever Handle Material Steel CP
Handle Jacket Material Vinyl
Handle Nut Material Stainless Steel
Inside Diameter (A) 1/2 in
Length (B) 4 1/8 in
Height (C) 2 in
Handle Length (D) 3 7/8 in
