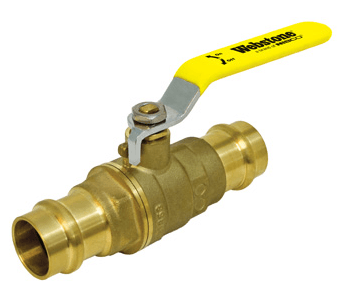

(Nibco Part#: H-81704W) 8170 Series - Full Port Forged Brass Ball Valves
$47.47
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: H-81704W
Brand: Nibco
UPC Code #:
Product Specifications
| Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Type | Ball Valve |
| Valve Size | 1 |
| Connection Type | Press |
| Valve Operator | Lever Handle |
| Weight | 1.17 lb |
| Maximum Temperature | 250 ºF |
| Maximum Operating Pressure | 250 psi |
| Stem Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Lead-Free Brass |
| Ball Material | Brass CP |
| Body Material | Brass |
| End Material | Brass |
| Packing Gland Material | PTFE |
| Packing Nut Material | Brass |
| Handle Material | Steel CP |
| Hex Nut Material | Stainless Steel |
| Inside Diameter (A) | 1.00 in |
| Length (B) | 4 11/16 in |
| Length (C) | .44 in |
| Length (D) | 0.75 in |
| Length (E) | 1.10 in |
| Handle Length (F) | 4.33 in |
