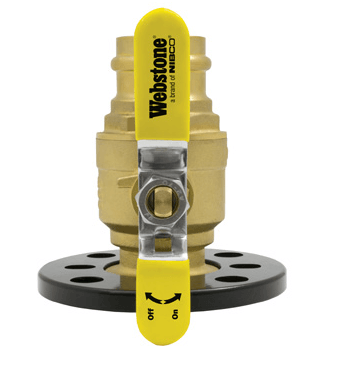

(Nibco Part#: H-81406HV-RF375) 8140HV-RF Series - Full Port Forged Brass Uni-Flange Ball Valves
$159.34
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: H-81406HV-RF375
Brand: Nibco
UPC Code #:
Product Specifications
| Type | Ball Valve |
| Valve Size | 1 1/2 |
| Connection Type | Press x Rotating Flange |
| Valve Operator | Lever Handle |
| Weight | 3.74 lb |
| Maximum Operating Pressure | 250 psi |
| Flanged Body Material | Brass |
| End Cap Material | Brass |
| Seat Material | PTFE |
| Ball Material | Brass HCP |
| Stem Material | Brass |
| Packing Gland Material | Brass |
| Lever Handle Material | Steel CP |
| O-Ring Material | EPDM |
| Hnadle Nut Material | Stainless Steel |
| Handle Jacket Material | Vinyl |
| Rotaring Flange Material | Ductile Iron |
| Rotaring Flange Ring Material | Stainless Steel |
| Flange Bolts & Nuts Material | Steel ZP |
| Inside Diameter (A) | 1 1/2 in |
| Length (B) | 5.00 in |
| Height (C) | 3 3/8 in |
| Handle Length (D) | 3 3/8 in |
| Flange Thickness (E) | 7/16 in |
| Hole Diameter (F) | 5/8 in |
| Flange Inside Diameter (G) | 1 1/2 |
| Hole Pitch (H) | 3 7/8 in |
| Flange Outside Diameter (I) | 5 in |
| Hole Length (K) | 5/8 in |
