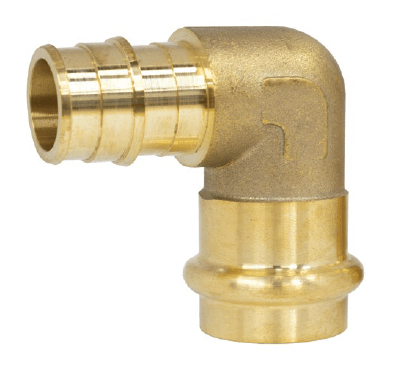

(Nibco Part#: H-36846W) 3684W Series - Forged DZR Brass 90-degree Transition Elbow
$62.32
Use Code: 5%OFF at Checkout
No Login Required - One Page Guest Checkout
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: H-36846W
Brand: Nibco
UPC Code #:
Product Specifications
| Industry Standards/Certifications | NSF/ANSI 61 & 372 NSF/ANSI 14 IGC 319, PS117 |
| Type | Elbow |
| Size | 1 1/2 |
| Connection Type | Press x ASTM F1960 PEX |
| Weight | 0.904 lb |
| Body Material | Lead Free DZR Brass |
| O-Ring Material | EPDM |
| Maximum Temperature | 250 ºF |
| Maximum Operating Pressure | 250 psi |
| A | 2.37 in |
| B | 2.74 in |
