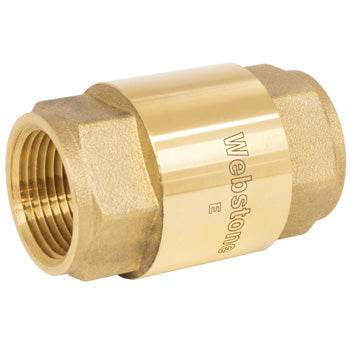

(Nibco Part#: H-10745W) H-107xW Series - Forged DZR Brass In-Line Spring Check Valve
$48.46
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: H-10745W
Brand: Nibco
UPC Code #:
Product Specifications
| Industry Standards/Certifications | Certified to NSF/ANSI 61 & 372 |
| Type | Check Valve |
| Connection Type | FIP |
| Valve Size | 1 1/4 |
| Weight | 426.38 g |
| Pressure Rating | 200 CWP |
| Max. Temperature | 250 ºF |
| Cv Coefficient | 14.90 |
| Cracking Pressure | 0.40 psi |
| Body Material | Brass |
| Stem Material | Brass |
| Spring Material | Stainless Steel |
| Gasket Material | FKM |
| End Cap Material | Brass |
| Diameter (A) | 2.31 in |
| Length (B) | 3.00 in |
