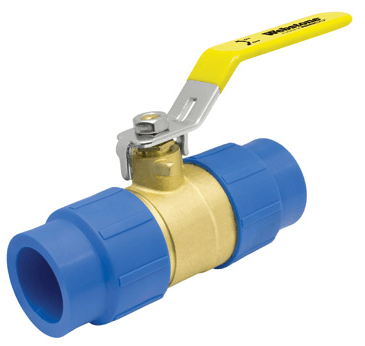

(Nibco Part#: H-101703W) 10170W Series - Full Port Forged Brass Ball Valves
$0.99
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: H-101703W
Brand: Nibco
UPC Code #:
Product Specifications
| Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Type | Ball Valve |
| Valve Size | 3/4 |
| Connection Type | Metric Socket Female |
| Valve Operator | Lever Handle |
| Weight | 0.88 lb |
| Maximum Temperature | 180 ºF |
| Maximum Operating Pressure | 600 psi |
| Maximum Operating Pressure Note | Determined by intended operating conditions and limitations specific to the system design. Maximum pressure rating for the seat and body alone is 600 PSI. |
| Body Material | Brass with PP-R |
| End Material | Brass with PP-RCT |
| Seat Material | PTFE |
| Ball Material | Brass HCP |
| Stem Material | Brass |
| Stem Seal Material | PTFE |
| Packing Gland Material | Brass |
| Lever Handle Material | Steel CP |
| Handle Jacket Material | Vinyl |
| Handle Nut Material | Stainless Steel |
| Inside Diameter (A) | 0.75 in |
| Length (B) | 4 5/16 in |
| Height (C) | 2 1/16 in |
| Handle Length (D) | 3 7/8 in |
