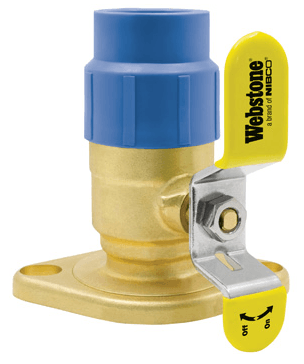

(Nibco Part#: H-101407WHV) 10140W Series - Full Port Forged Brass Uni-Flange Ball Valves
$161.32
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: H-101407WHV
Brand: Nibco
UPC Code #:
Product Specifications
| Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Type | Ball Valve |
| Valve Size | 2 |
| Connection Type | Socket Female x Flange |
| Valve Operator | Lever Handle |
| Weight | 3.74 lb |
| Maximum Operating Pressure | 600 psi |
| Flanged Body Material | Brass |
| End Material | Brass with PP-R |
| Seat Material | PTFE |
| Ball Material | Brass HCP |
| Stem Material | Brass |
| Stem Seal Material | PTFE |
| Packing Gland Material | Brass |
| Lever Handle Material | Steel CP |
| Handle Nut Material | Stainless Steel |
| Handle Jacket Material | Vinyl |
| Rotating Flange Material | Brass |
| Rotating Flange Ring | Stainless Steel |
| Flange Bolt & Nuts Material | Steel ZP |
| Inside Diameter (A) | 1 1/2 in |
| Length (B) | 5 3/8 in |
| Height (C) | 3.50 in |
| Handle Length (D) | 5 3/4 in |
| Flange Thickness (E) | 7/16 in |
| Hole Length (F(HV)) | 5/8 in |
| Hole Diameter (G) | 1 1/2 in |
| Hole Pitch (H) | 2 11/16 in |
| Flange Length (I) | 4 1/8 in |
