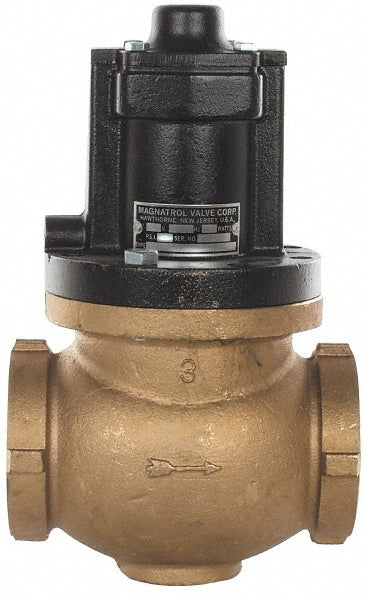

Solenoid Valve: 3" Port, NPT
$3,695.23
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 67827469
Brand: Magnatrol Valve
Model #: G44A49SC-ACBW
Product Specifications
| Valve Type | Solenoid |
| Port Size | 3 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Bronze |
| Seal Material | Buna-N |
| Voltage | 120/60V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 100 |
| Cv Factor Nc | 100.0000 |
| Overall Height (Decimal Inch) | 13.7500 |
| Overall Length (Decimal Inch) | 8.3750 |
| Standards | Explosion-Proof & NEMA 4; NEMA 12 (General Purpose); NEMA 4X |
| Coil Included | Yes |
| Maximum Temperature (F) ( - 0 Decimals) | 212 |
| Maximum Temperature (C) | 212 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
