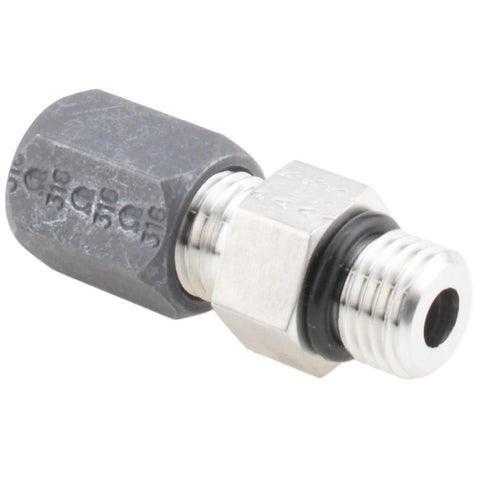

Compression Tube Connector: 7/16-20, 1/4" Tube OD, Compression x Straight Thread O-Ring
$26.67
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 75657080
Brand: Made in USA
Model #: F-4-GC
Product Specifications
| Fitting Type | Connector |
| Material | Stainless Steel |
| End Connections | Compression x Straight Thread O-Ring |
| Thread Size (Inch) | 7/16-20 |
| Thread Standard | UNF |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 5000 |
| Standards | SAE |
| Material Grade | 316 |
| Maximum Temperature (F) ( - 0 Decimals) | 750 |
| Minimum Temperature (Deg F - 3 Decimals) | -75 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
