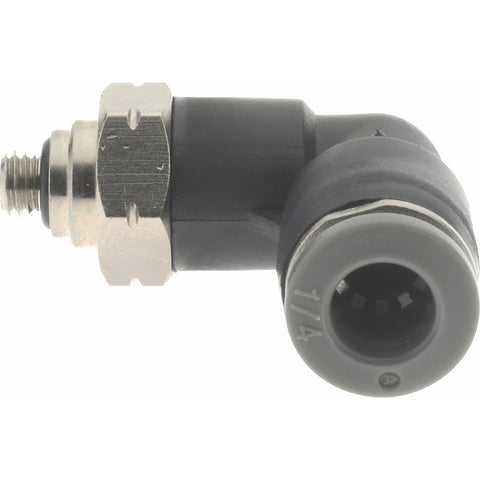

Push-to-Connect Tube x Male x Tube x Male UNF Fitting: 90 deg Swivel Elbow, #10-32 Thread, UNF, 1/4" OD
$7.52
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 00349175
Brand: Norgren
Model #: C24470410
Product Specifications
| Fitting Type | 90 deg Swivel Elbow |
| Connection Type | Tube x Male x Tube x Male UNF |
| Material | Brass |
| Thread Size | #10-32 |
| Tube Outside Diameter | 1/4 |
| Thread Type | UNF |
| Minimum Work Temperature (F) | 0 |
| For Use With | General Purpose |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 175 |
| Overall Length (Decimal Inch) | 1.0200 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | South Korea |
