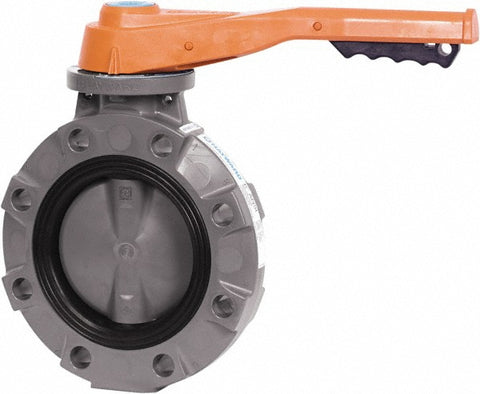

Manual Wafer Butterfly Valve: 3" Pipe, Lever Handle
$383.88
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 92744689
Brand: Hayward Flow Control
Model #: BYV11030A0EL000
Product Specifications
| Style | Wafer |
| Pipe Size (Inch) | 3 |
| Handle Type | Lever |
| Body Material | Polyvinylchloride |
| Seat Material | Ethylene Propylene Diene Monomer |
| Material Grade | ASTM D1784 Cell Class 12454 |
| Disc Material | Polyvinylchloride |
| Stem Material | Stainless Steel |
| Bolt Circle Diameter (mm) | 19.00 |
| Overall Height (Decimal Inch) | 8.3100 |
| Overall Height (Decimal Inch) | 211.00 |
| Number Of Bolt Holes | 4 |
| Bolt Circle Diameter (Decimal Inch) | 0.7500 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Standards | NSF/ANSI 61; NSF/ANSI 372 Listed |
| UNSPSC Code | 40141619 |
| Country of Origin | UNITED STATES |
