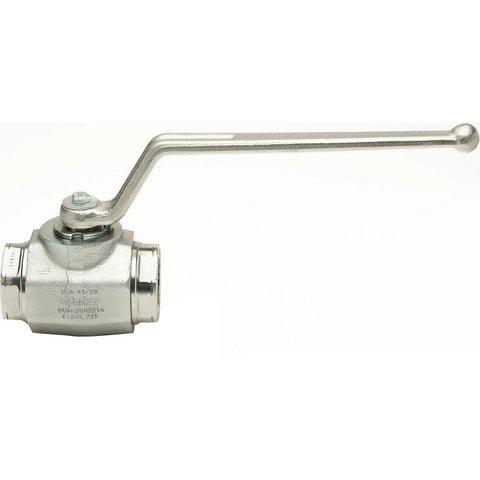

Standard Manual Ball Valve: 1-1/2" Pipe
$929.65
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 60216280
Brand: Parker
Model #: BVAH24SSS1N
Product Specifications
| Valve Type | Ball; Standard |
| Pipe Size | 1-1/2 |
| Body Material | Carbon Steel |
| Connection Style | Threaded |
| End Connection | SAE x SAE |
| Port Type | SAE |
| Handle Type | Lever |
| Style | High-Pressure; In-Line; Manual |
| Maximum Working Pressure (PSI - 3 Decimals) | 6000 |
| Thread Size | 1-7/8-12 |
| Trim Material | Carbon Steel |
| Seal Material | Delrin |
| Standards | California PROP 65 |
| Maximum Working Pressure | 6000.000 |
| Maximum Working Pressure (bar) | 414.00 |
| Maximum Working Temperature (F) | 212 |
| Maximum Working Temprature (Deg C) | 100 |
| Minimum Working Temperature (Deg F) | -22 |
| Minimum Working Temperature (Deg C) | -30 |
| Length (Decimal Inch - 4 Decimals) | 5.3300 |
| UNSPSC Code | 40141607 |
