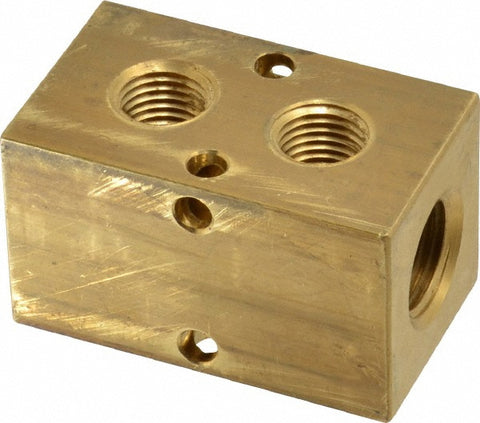

Manifold: 3/8" Inlet, 1/4" Outlet, 2 Inlet Ports, 2 Outlet Ports, 2.13" OAL, 1.25" OAW, 1-1/4" OAH
$80.13
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 78009438
Brand: Made in USA
Model #: BR02M124
Product Specifications
| Inlet Size | 3/8 in |
| Outlet Size | 1/4 in |
| Number of Inlet Ports | 2 |
| Number Of Outlet Ports | 2 |
| Outlet Center to Center Distance | 0.8800 |
| Overall Length (Decimal Inch) | 2.1300 |
| Height (Inch) | 1-1/4 |
| Body Material | Brass |
| Number of Ports | 4 |
| Thread Type | NPT |
| Width (Decimal Inch - 4 Decimals) | 1.2500 |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2000 |
| Height (Decimal Inch) | 1.2500 |
| UNSPSC Code | 40141734 |
