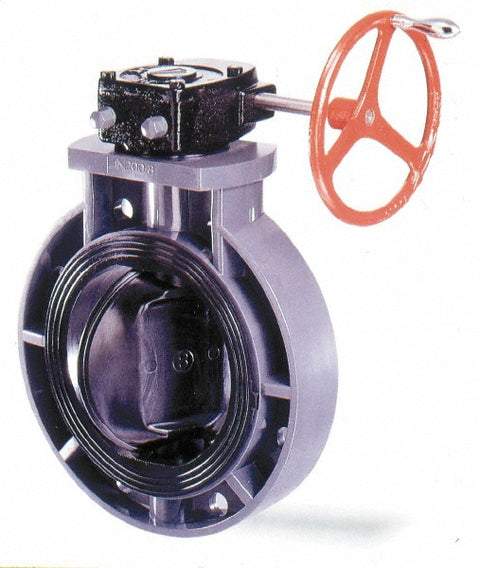

Manual Wafer Butterfly Valve: 8" Pipe, Gear Handle
$1,343.58
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 31738214
Brand: Simtech
Model #: BFP 111 6 080-G
Product Specifications
| Style | Wafer |
| Pipe Size (Inch) | 8 |
| Handle Type | Gear |
| Body Material | Polyvinylchloride |
| Seat Material | Ethylene Propylene Diene Monomer |
| Material Grade | D1970; D1784; D4101; D3222 |
| Handle Material | Cast Iron |
| Disc Material | Polypropylene |
| Stem Material | Stainless Steel |
| Overall Height (Decimal Inch) | 20.6300 |
| Number Of Bolt Holes | 8 |
| Bolt Circle Diameter (Decimal Inch) | 0.8700 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Minimum Working Temperature (Deg F) | 70 |
| Standards | ISO 9002 Certified |
| Maximum Working Temperature (F) | 180 |
| UNSPSC Code | 40141619 |
| Country of Origin | Taiwan |
