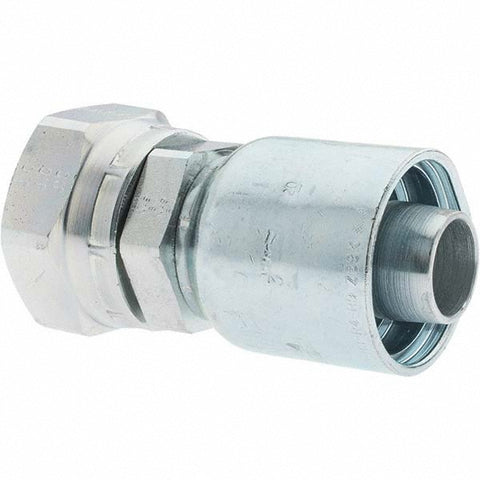

Hydraulic Hose Straight Female JIC 37 ° Swivel Fitting: 1" ID, 16 mm, 1-5/8-12
$78.75
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66438037
Brand: Parker
Model #: BD10643-20-16-1
Product Specifications
| Fitting Type | Straight Female JIC 37 deg Swivel Fitting |
| Hose Inside Diameter (Decimal Inch) | 1.0000 |
| Hose Size | 16 |
| Material | Steel |
| Thread Size (Inch) | 1-5/8-12 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 3.8100 |
| Overall Length (mm) | 97.00 |
| For Use With | 187; ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487; ST, 302, 304, 387; ST, 722; ST, 881 Hoses; ST, 787; ST, 797; TC |
| Standards | ISO 12151-5; California PROP 65 |
| Series | 43 |
| Shaft Type | Female SAE |
| UNSPSC Code | 40141734 |
| Country of Origin | UNITED STATES |
