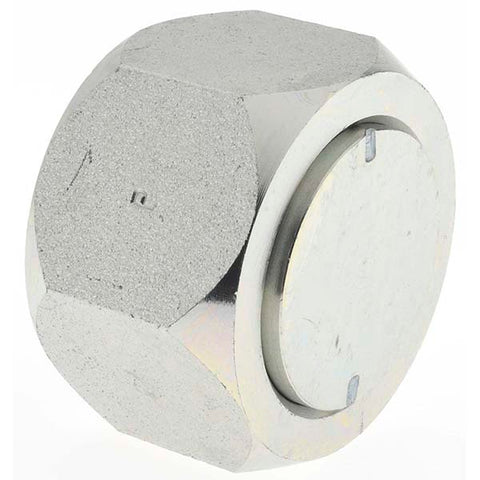

Steel Flared Tube Cap: 1-1/2" OD, 37 deg Flared Angle
$61.85
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 66440892
Brand: Parker
Model #: BD-24 FNTX-S-1
Product Specifications
| Fitting Type | Cap |
| Flared Angle | 37 |
| Material | Steel |
| End Connection | Flare |
| Maximum Working Temperature (F) | 500 |
| Standards | ISO 8434-2; SAE 070112A; SAE J514 |
| Max Working Pressure Dynamic | 3000 |
| Outside Diameter (Inch) | 1-1/2 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.7000 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
