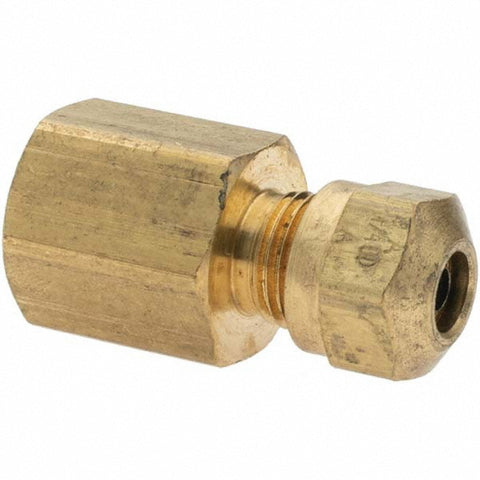

Compression Tube Connector: 1/4" Tube OD, Compression x FNPT
$101.09
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 53570537
Brand: Parker
Model #: BD-10755
Product Specifications
| Fitting Type | Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Standard | MNPT |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 1.4000 |
| Standards | SAE J1131; SAE J246; D.O.T. FMVSS571.106 |
| Minimum Temperature (C - 2 Decimals) | 40 |
| Maximum Temperature (C) | 93 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
